Rack having a diameter of 29 meters and made in 56 sectors.

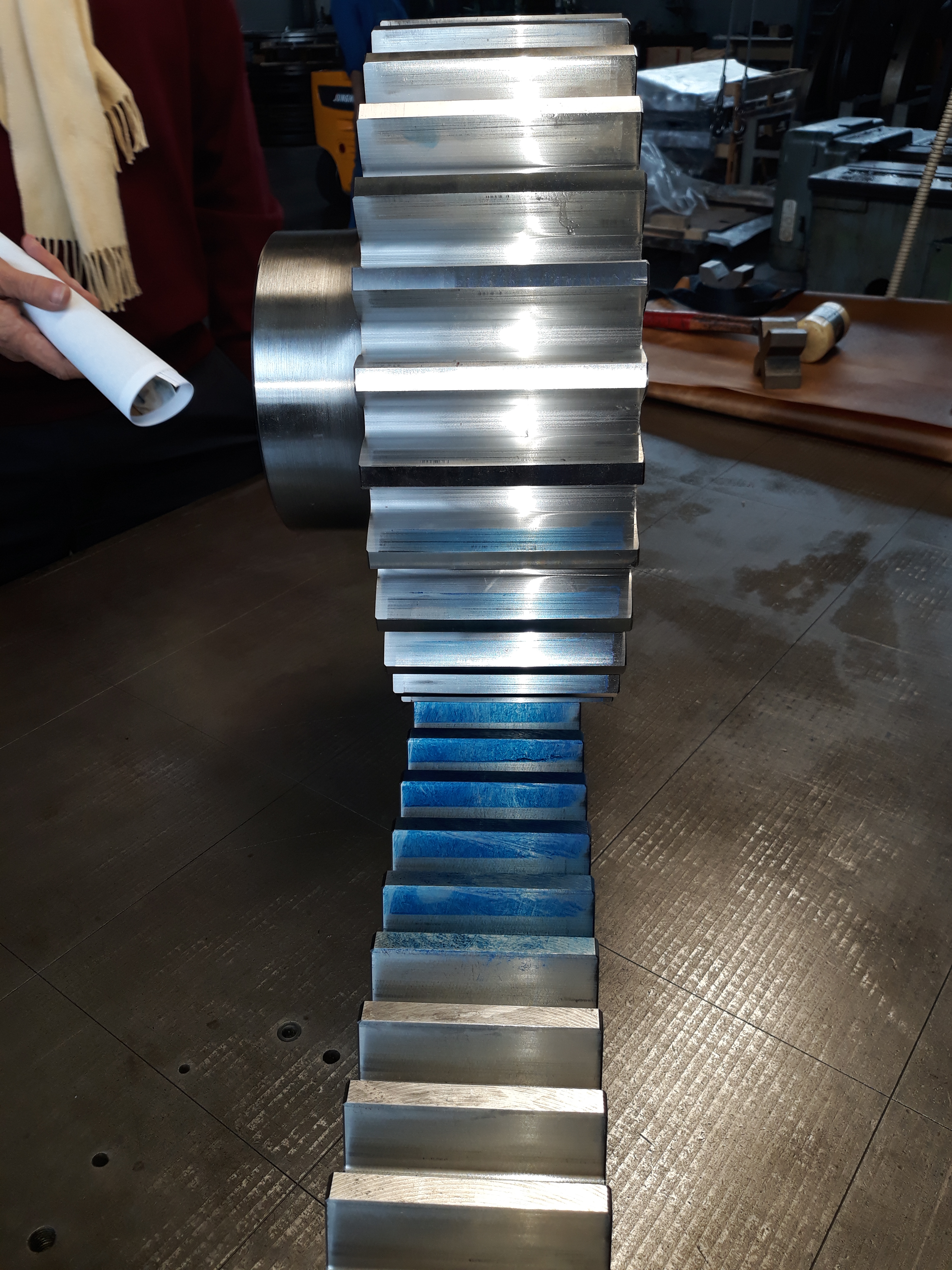

Mating final test between rack and pinion
Rack made from 42 CrMo hardened and tempered steel plate cold cutted with saw
Rough machined rack ready for final machining
Rack during rough machining
Rack complety machined after gear cutting

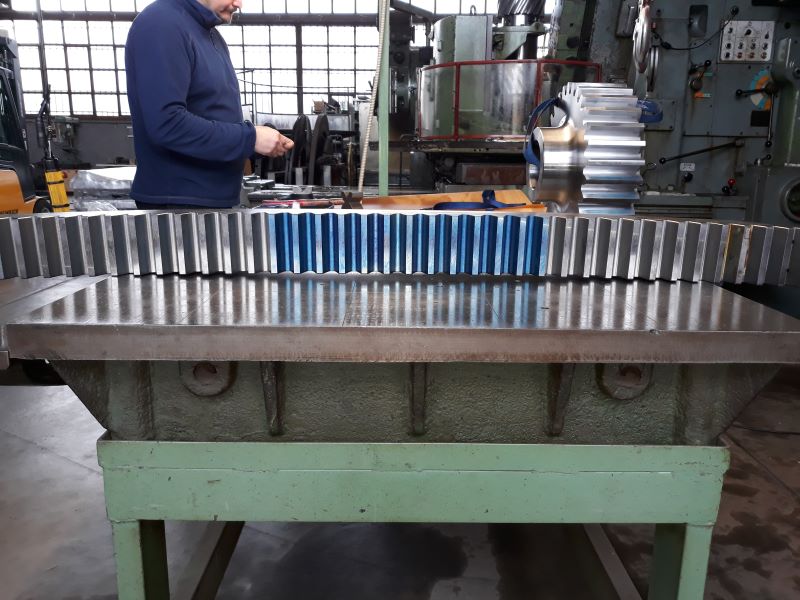

Rack preparation to mating
